Search Parameter

Series Shape Temperature range(℃) Rated voltage(V) Capacitance(uF) Rated ripple current(mArms) Durability(h) ESR or Z(mΩ) φD(mm) L(mm) Allowable ripple current(mArms)
≤ ≥
≤ ≥
≤ ≥
≤ ≥
≤ ≥
≤ ≥
≤ ≥
≤ ≥
≤ ≥
Search results24/12841Cases
About the use of simulation data
Choice
Product Type
   		Catalog Sample
Purchase 		Temperature range
(℃)
   		Rated voltage
(V)
   		Capacitance
(uF)
   		φD
(mm)
   		L
(mm)
   		Rated ripple current
(mArms)
                     		ESR or Z
(mΩ)
                     		Durability
(h)
                     		Temperature
Characteristics 		Weight
(reference level)
(g)
   		Spice Model 3D Model Allowable Ripple Current
(mArms)

Hybrid type
25CHV100M6.3X8

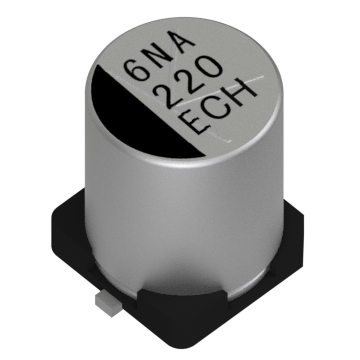

CHIP TYPE CHV Series
-55 ～ 135 25 100 6.3 8 1400
135℃/100kHz
30
20℃/100kHz
2000
 2000
 0.4 2200
125℃/100kHz
Hybrid type
25CHV220M8X10.5
CHIP TYPE CHV Series
-55 ～ 135 25 220 8 10.5 1600
135℃/100kHz
22
20℃/100kHz
4000
 4000
 0.9 2900
125℃/100kHz
Hybrid type
25CHV270M8X10.5
CHIP TYPE CHV Series
-55 ～ 135 25 270 8 10.5 1600
135℃/100kHz
22
20℃/100kHz
4000
 4000
 0.9 2900
125℃/100kHz
Hybrid type
25CHV330M10X10.5
CHIP TYPE CHV Series
-55 ～ 135 25 330 10 10.5 2000
135℃/100kHz
20
20℃/100kHz
4000
 4000
 1.3 3600
125℃/100kHz
Hybrid type
25CHV470M10X10.5
CHIP TYPE CHV Series
-55 ～ 135 25 470 10 10.5 2000
135℃/100kHz
20
20℃/100kHz
4000
 4000
 1.3 3600
125℃/100kHz
Hybrid type
25CHV56M6.3X6.1
CHIP TYPE CHV Series
-55 ～ 135 25 56 6.3 6.1 900
135℃/100kHz
50
20℃/100kHz
2000
 2000
 0.3 1400
125℃/100kHz
Hybrid type
35CHV150M8X10.5
CHIP TYPE CHV Series
-55 ～ 135 35 150 8 10.5 1600
135℃/100kHz
22
20℃/100kHz
4000
 4000
 0.9 2900
125℃/100kHz
Hybrid type
35CHV180M8X10.5
CHIP TYPE CHV Series
-55 ～ 135 35 180 8 10.5 1600
135℃/100kHz
22
20℃/100kHz
4000
 4000
 0.9 2900
125℃/100kHz
Hybrid type
35CHV270M10X10.5
CHIP TYPE CHV Series
-55 ～ 135 35 270 10 10.5 2000
135℃/100kHz
20
20℃/100kHz
4000
 4000
 1.3 3600
125℃/100kHz
Hybrid type
35CHV330M10X10.5
CHIP TYPE CHV Series
-55 ～ 135 35 330 10 10.5 2000
135℃/100kHz
20
20℃/100kHz
4000
 4000
 1.3 3600
125℃/100kHz
Hybrid type
35CHV47M6.3X6.1
CHIP TYPE CHV Series
-55 ～ 135 35 47 6.3 6.1 900
135℃/100kHz
60
20℃/100kHz
2000
 2000
 0.3 1400
125℃/100kHz
Hybrid type
35CHV68M6.3X8
CHIP TYPE CHV Series
-55 ～ 135 35 68 6.3 8 1400
135℃/100kHz
35
20℃/100kHz
2000
 2000
 0.4 2200
125℃/100kHz
Hybrid type
50CHV100M10X10.5
CHIP TYPE CHV Series
-55 ～ 135 50 100 10 10.5 1600
135℃/100kHz
28
20℃/100kHz
4000
 4000
 1.3 2900
125℃/100kHz
Hybrid type
50CHV150M10X10.5
CHIP TYPE CHV Series
-55 ～ 135 50 150 10 10.5 1600
135℃/100kHz
28
20℃/100kHz
4000
 4000
 1.3 2900
125℃/100kHz
Hybrid type
50CHV68M8X10.5
CHIP TYPE CHV Series
-55 ～ 135 50 68 8 10.5 1300
135℃/100kHz
30
20℃/100kHz
4000
 4000
 0.9 2300
125℃/100kHz
Hybrid type
50CHV82M8X10.5
CHIP TYPE CHV Series
-55 ～ 135 50 82 8 10.5 1300
135℃/100kHz
30
20℃/100kHz
4000
 4000
 0.9 2300
125℃/100kHz
Hybrid type
63CHV33M8X10.5
CHIP TYPE CHV Series
-55 ～ 135 63 33 8 10.5 1200
135℃/100kHz
40
20℃/100kHz
4000
 4000
 0.9 2100
125℃/100kHz
Hybrid type
63CHV39M8X10.5
CHIP TYPE CHV Series
-55 ～ 135 63 39 8 10.5 1200
135℃/100kHz
40
20℃/100kHz
4000
 4000
 0.9 2100
125℃/100kHz
Hybrid type
63CHV56M10X10.5
CHIP TYPE CHV Series
-55 ～ 135 63 56 10 10.5 1500
135℃/100kHz
30
20℃/100kHz
4000
 4000
 1.3 2600
125℃/100kHz
Hybrid type
63CHV68M10X10.5
CHIP TYPE CHV Series
-55 ～ 135 63 68 10 10.5 1500
135℃/100kHz
30
20℃/100kHz
4000
 4000
 1.3 2600
125℃/100kHz
12
